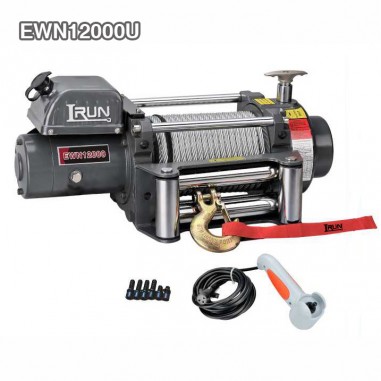

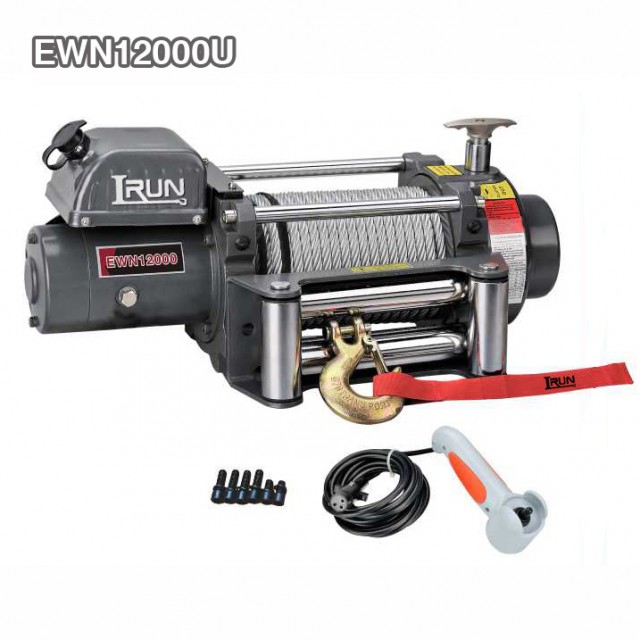

Heavy Duty Electric Winch   12000 lb Item No.EWN12000U

Heavy Duty Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our EWX Series.They’re widely applied for severe offroad or engineering use.

Heavy Duty Electric Recovery  Winch  Item No. EWN12000U Winching Capacity of up to 12000lbs comes alone with  a control box, a wire rope with hook,a roller failread accessories.

The heavy duty design specially on automatic screw cone, patent hardened steel three stage planetary gear reducer provides a safer opeation and higher efficient transmission of recovery winch.



Features:

1.)  Free spooling clutch

2.)  Automatic screw cone braking action

3.)  Series wound motor

4.)  Patent design three stage planetary gear reducer

5.)  Specially designed shape for convenience of installation and good looking

6.)  Remote control through control box and switch

7.)  Wireless remote control available

8.)  DC 12V or DC 24V Power drive optional



EWN12000

SPECIFICATION
Rated line pull	12000 lbs (5443kgs)
Motor: permanent magnet	12V:Input: 5.4kW / 7.2hp;Output: 2.1kW /2.8hp 24V:Input: 5.3kW / 7.1hp;Output: 2.5 kW /3.4hp
Gear reduction ratio	332:1
Cable (Dia.× L)	Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m)
Drum size (Dia.× L)	Ø2.8 “×8.6” (Ø72mm×219mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) 4-M12

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	12000(5443)	18.4(5.6)
0	16.4(5.0)	17.7(5.4)	80	40	2	9800(4445)	41.0(12.5)
6000(2722)	7.54(2.3)	7.9(2.4)	260	110	3	8300(3765)	65.6(20.0)
8000(3629)	6.4(1.95)	6.6(2.0)	310	145	4	7200(3266)	83.7(25.5)
10000(4536)	5.74(1.75)	5.9(1.8)	380	185
12000(5443)	4.76(1.45)	5.6(1.7)	450	220

ITEM	EWN12000U	EWN12000S
Overall dimensions	22.6″×8.1″×9.7″ 573mm×206mm×246mm	22.6″×8.1″×11.8″ 573mm×206mm×299mm
(L×W×H)
Net weight (Ibs)	132.3 61	132.4 61.3
(kgs)

Overall Dimensions 22.6″ x 8.1″ x 9.7″
(L x W x H) 573mm x 206mm x 246mm

Net Weight 61 KGS
