12V or 24V Powerful Electric Winches 5000lbs For SUV With Permanent Motor
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
12V or 24V Powerful Electric Winches 5000lbs For SUV With Permanent Motor EWK5000S
5000 lbs Electric Winch For SUV With Permanent Motor is our first generation recovery winch. We keep efforts to purify our products. It still keeps a good sales in our long cooperative clients because of its stable quality, fine performance.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7.SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet |
12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp
24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |

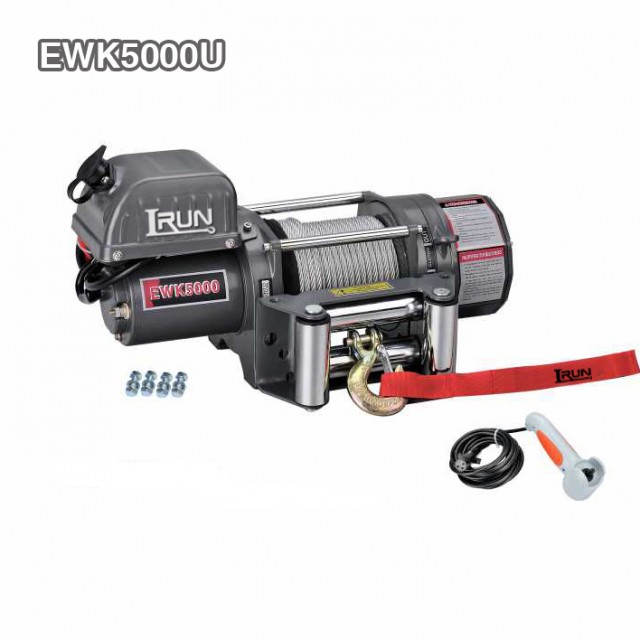

| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions |
18.4″×7.1″×9.6″
466mm×180mm×243mm |
17.5″×7.1″×11.7″
444mm×180mm×297mm |
17.5″×7.1″×10.6″
444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
47.8
21.7 |
48.2
21.9 |
49.8
22.6 |
| (kgs) |
Overall Dimensions：18.4″ x 7.1″ x 9.6″
(L x W x H) 466mm x 180mm x 243mm
Net Weight：21.7 KGS
Looking for ideal 5000 Lb Electric Winch Manufacturer & supplier? We has a wide selection at great prices to help you get creative. All the Suv Electric Winches are quality guaranteed. We are China Origin Factory of 4WD Electric Winches. If you have any question, please feel free to contact us.
