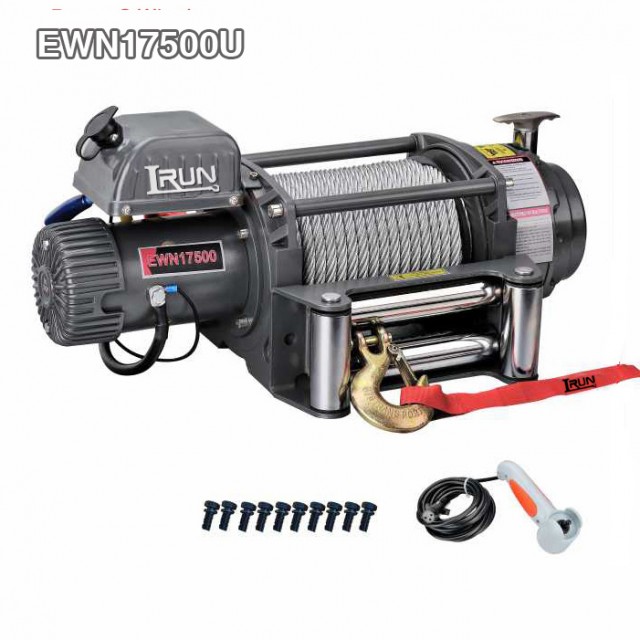

Heavy Duty Electric Winch 17500lb Item No.EWN17500U

Heavy Duty Electric Recovery Winch Item No. EWN17500U Winching Capacity of up to 17500lbs. Each winch come along with a control box, a wire rope with hook, a roller failread accessories. This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation, and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmission. EWN17500 as the classic model of our heavy duty winch EWN Series be of a more durable working life, faster line speed and better efficient transmission. They’re widely applied for severe offroad or engineering use.

Features:

1.) Full steel reducer gear

2.) Pull and turn free spooling clutch

3.) Automatic screw cone braking action

4.) Heavy duty design

5.) Standard 4-way roller fairlead

6.) Clevis pinned/latched hook

7.)Series wound motor

8.) Patent design three stage planetary gear reducer

9.) Specially designed shape for convence of installation and good looking

10.)Remote control through control box and switch

11.) DC 12V or DC 24V Power drive optional

12.) Wireless remote optional

Rated line pull 17500 lbs(7938 kgs)

Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp

Gear reduction ratio 430:1

Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)

Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12

Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)

Net weight Ibs (kgs) 148.4(67.3)

EWN17500

SPECIFICATION
Rated line pull	17500 lbs (7938 kgs)
Motor: permanent magnet	12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp 24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp
Gear reduction ratio	430:1
Cable (Dia.× L)	Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L)	Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) 10 “×6.5 ” (254mm×165.1mm) 8-M12

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	17500(7938)	18.0(6.0)
0	19.7(6.0)	13.8(4.4)	100	40	2	14140(6414)	40.7(13.0)
6000(2722)	7.2(2.2)	6.9(2.1)	220	100	3	11862(5381)	65.9(21.0)
10000(4536)	5.6(1.7)	5.9(1.8)	320	140	4	10217(4634)	86.9(26.5)
12500(5670)	4.9(1.5)	5.2(1.6)	350	180
14000(6350)	4.6(1.4)	4.6(1.4)	380	200
17500(7938)	3.0(0.9)	3.9(1.2)	450	250

ITEM	EWN17500U	EWN17500S
Overall dimensions	24.4″×8.4″×11.4″ 620mm×214mm×290mm	24.4″×8.4″×12.6″ 620mm×214mm×321mm
(L×W×H)
Net weight (Ibs)	147.7 67.0	148.4 67.3
(kgs)

Overall Dimensions 24.4″ x 8.4″ x 11.4″
(L x W x H) 620mm x 214mm x 290mm

Net Weight 67.0 KGS
