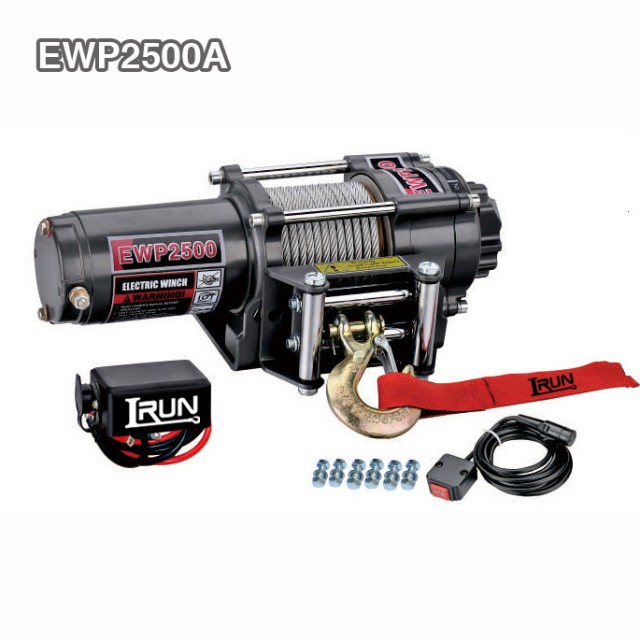

Electric ATV winch 2500 lbs Item No.EWP2500A

Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available

EWP2500

SPECIFICATION
Rated line pull	2500 lbs (1134 kgs)
Motor: permanent magnet	12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/1.1hp
	24V:Input: 2.4 kW/ 3.2hp; Output: 0.9 kW/1.2hp
Gear reduction ratio	170:1
Cable (Dia.× L)	Ø3/16″×45.9′ (Ø 4.8mm×14.0m)
Drum size (Dia.× L)	Ø1.46″×3.15″ (Ø 37mm×80 mm)
Mounting bolt pattern	3.13″ (79.5 mm) 2-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	2500(1134)	6.9(2.1)
0	14.1(4.3)	10.5(3.2)	20	16	2	2033(922)	15.1(4.6)
500(227)	9.8(3.0)	10.2(3.1)	55	35	3	1713(777)	24.3(7.4)
1500(680)	7.5(2.3)	9.2(2.8)	95	65	4	1480(671)	34.1(10.4)
2500(1134)	4.3(1.3)	8.2(2.5)	160	100	5	1303(591)	45.9(14.0)



ITEM	EWP2500D	EWP2500A	EWP2500U
Overall dimensions	12.7″×4.5″×4.4″	12.7″×4.5″×4.4″	13.2″×4.5″×6.5″
(L×W×H)	323mm×113mm×112 mm	323mm×113mm×112 mm	335mm×113mm×165 mm
Net weight (Ibs)	19.8	20.5	20.5
(kgs)	9.0	9.3	9.3

Overall dimensions: 12.7″x4.5″x4.4″

(LxWxH) 323mmx113mmx112mm

Net Weight: 9.3 KGS
