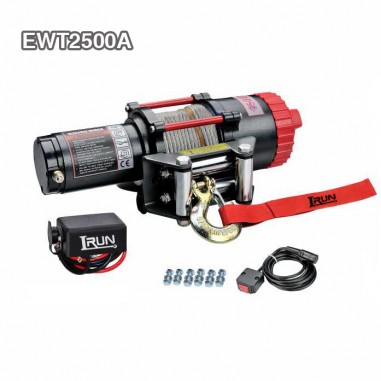

Electric Winch 2500lb for ATV Item No.EWT2500A

Features:
1. 3-stage planetary steel gear reducer.

2. Patent design cam clutch .

3. Free spooling clutch.

4. Each comes with a seperate control box

5. Automatic screw cone braking action

6. DC 12V or DC 24V Power drive optional

7. High current working switch control directly

8. ATV handlebar switch control

9. Remote control through control box and switch

10. Wireless remote control available

EWT2500

SPECIFICATION
Rated line pull	2500 lbs (1134 kgs)
Motor: permanent magnet	12V:Input: 1.8kW / 2.4hp; Output: 0.8 kW / 1.1hp
	24V:Input: 1.9kW / 2.6hp; Output: 0.9 kW / 1.2hp
Gear reduction ratio	166:1
Cable (Dia.× L)	Ø 3/16″×45.9′ (Ø4.8mm×14.0m)
Drum size (Dia.× L)	Ø 2.0″×3.2″ (Ø50.4mm×82 mm)
Mounting bolt pattern	3.13″ (79.5 mm) 2-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	2000(907)	6.6(2.0)
0	9.5(2.9)	9.8(3.0)	15	12	2	1630(739)	14.1(4.3)
500(227)	8.2(2.5)	8.9(2.7)	60	40	3	1380(626)	22.3(6.8)
1500(680)	5.6(1.7)	7.5(2.3)	115	60	4	1190(540)	31.2(9.5)
2000(907)	3.6(1.1)	6.2(1.9)	145	80	5	1050(476)	41.0(12.5)
					6	940(426)	49.2(15.0)



ITEM	EWT2500D	EWT2500A	EWT2500U
Overall dimensions	14.3″×4.5″×4.8″	14.3″×4.5″×4.8″	14.3″×4.5″×6.3″
(L×W×H)	368mm×115mm×123mm	368mm×115mm×123mm	372mm×115mm×160mm
Net weight (Ibs)	24.7	27.1	26.9
(kgs)	11.2	12.3	12.2

Overall dimensions: 14.3″x4.5″x4.8″

(LxWxH) 368mmx115mmx123mm

Net Weight: 12.3 kgs
