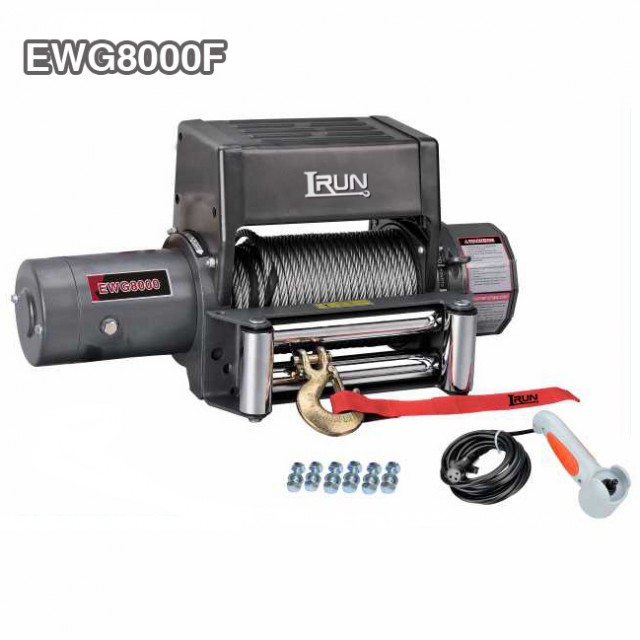

4×4 Electric Winches for SUV or Jeep with Stand-Up Control Box 8000LBS EWG8000F
8000 lbs Electric Winch Item No.EWG is Great For Suv or Jeep With Stand-up control box and Series Wound Motor.It’s our repersentive of pioneer produc of our recovery 4×4 winch. its stable quality, fine performance and attractive price features won the great praise from all over the world customers.Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
SPECIFICATION | |
Rated line pull | 8000 lbs (3629 kgs) |
Motor: Series Wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
Gear reduction ratio | 210:1(12V); 150:1(24V) |
Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 |
ITEM | EWG8000U | EWG8000S | EWG8000F |
Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
(L×W×H) | |||
Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
(kgs) |
Overall Dimensions:22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight:33.5 KGS
Looking for ideal 4×4 Winch 8000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Electric 4×4 Winch 8000 Pound are quality guaranteed. We are China Origin Factory of Runva 4×4 Winches. If you have any question, please feel free to contact us.
