4×4 Wireless Remote Control Winches 10000lbs Contro box tie on Winch motor
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

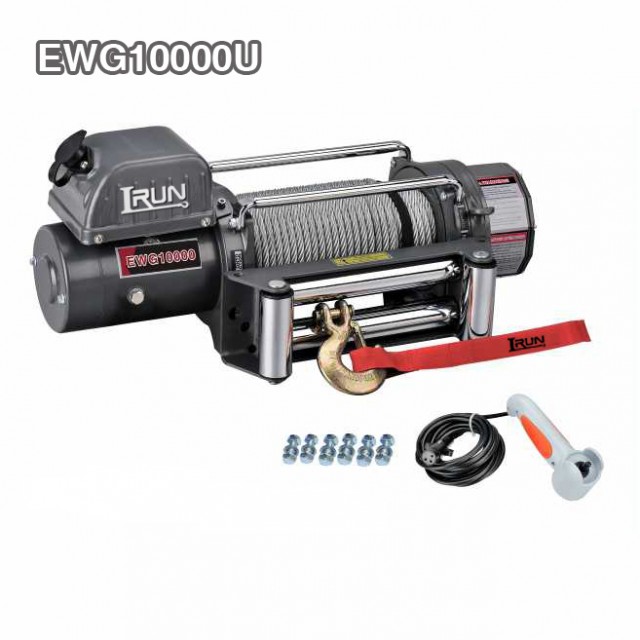

EWG10000U
10000 lbs Electric Winch Item No. EWG10000U as one of regular 10000 lbs winches Series. It gains many praise from clients becasue of its stable quality, reasonal price and good performance.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound |
12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp
24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
73.8
33.8 |
75.0
34.0 |
75.3
34.2 |
| (kgs) |
Overall Dimensions： 22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
