9000lbs Waterproof Electric Winches For 4×4 Control Box tie on Winch Motor
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

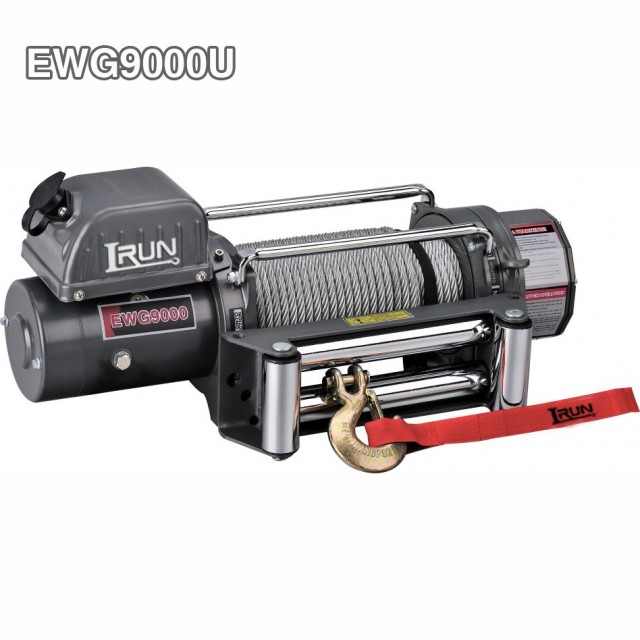

9000 lbs Electric Winch Item No. EWG9000U is ideal for offroad car or Jeep. We designed the conrol box installed on the winch motor. It has features with good performance,stable quality and reasonal prices.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000U
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: permanent magnet |
12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp
24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
73.8
33.8 |
75.0
34.0 |
75.3
34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
Net Weight： 33.8 KGS
Looking for ideal 4×4 Winches 9000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 4×4 Waterproof Electric Winch are quality guaranteed. We are China Origin Factory of 4×4 Electric Winch. If you have any question, please feel free to contact us.
