ATV Winch 2500 Lbs
Packaging: Export carton
Brand: OEM order acceptable
Place of Origin: China
Certificate: CE Certificate
- Description

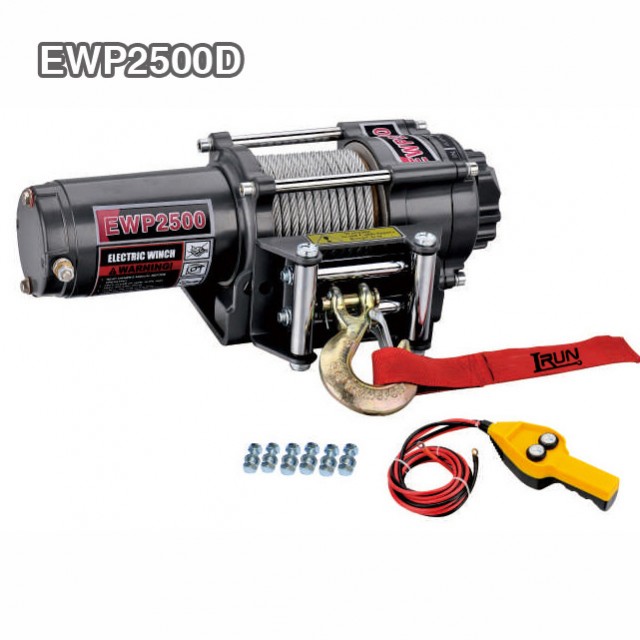

Electric ATV winch 2500 lbs Item No.EWP2500D
Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available
EWP2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/1.1hp |
| 24V:Input: 2.4 kW/ 3.2hp; Output: 0.9 kW/1.2hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø3/16″×45.9′ (Ø 4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2500(1134) | 6.9(2.1) | |
| 0 | 14.1(4.3) | 10.5(3.2) | 20 | 16 | 2 | 2033(922) | 15.1(4.6) |
| 500(227) | 9.8(3.0) | 10.2(3.1) | 55 | 35 | 3 | 1713(777) | 24.3(7.4) |
| 1500(680) | 7.5(2.3) | 9.2(2.8) | 95 | 65 | 4 | 1480(671) | 34.1(10.4) |
| 2500(1134) | 4.3(1.3) | 8.2(2.5) | 160 | 100 | 5 | 1303(591) | 45.9(14.0) |
| ITEM | EWP2500D | EWP2500A | EWP2500U |
| Overall dimensions | 12.7″×4.5″×4.4″ | 12.7″×4.5″×4.4″ | 13.2″×4.5″×6.5″ |
| (L×W×H) | 323mm×113mm×112 mm | 323mm×113mm×112 mm | 335mm×113mm×165 mm |
| Net weight (Ibs) | 19.8 | 20.5 | 20.5 |
| (kgs) | 9.0 | 9.3 | 9.3 |
Overall dimensions: 12.7″x4.5″x4.4″
(LxWxH) 323mmx113mmx112mm
Net Weight: 9.0 KGS
