Automatcic Braking Hydraulic Truck Winch 10000 lbs With Hydarulic Accessories
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

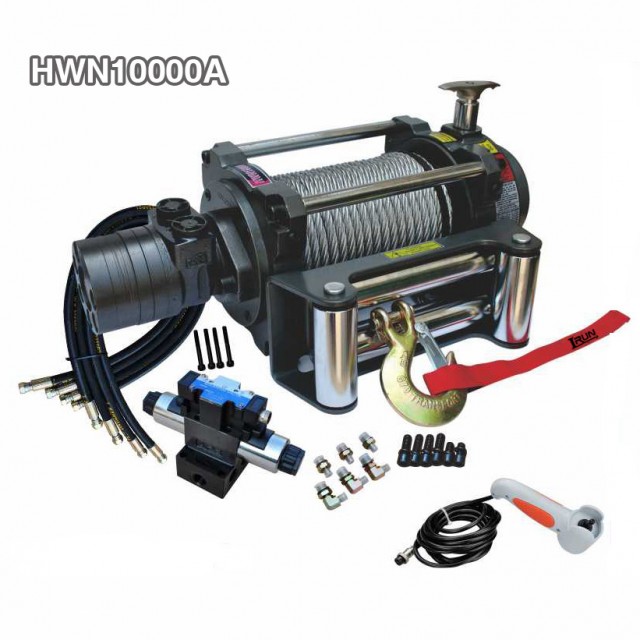

10000 lbs Heavy Duty Hydraulic Winch Item No. HWN10000A has the rated line pull of 10000lbs
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patent hardened steel two stage planetar gear reducer provides high efficient transmisson
Each winch come along with a seperated electric valve , a wire rope with hook,a roller failread and a set of Hydraulic Accessories.
Features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
HWN10000U/A
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 11.5Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8″×8. 6″ (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) |
| 3000(1361) | 3.4(453.1) | 2.6(10.0) | 4.6(1.4) |
| 6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) |
| 9000(4082) | 10.3(1493.9) | 9.2(35.0) | 15.1(4.6) |
| 10000(4536) | 11.5(1668.0) | 10.6(40.0) | 17.4(5.3) |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 10000(4536) | 16.4 (5.0) | |
| 2 | 8012(3634) | 37.2(11.3) | |
| 3 | 6683(3031) | 60.9(18.6) | |
| 4 | 5732(2600) | 83.7(25.5) |
| ITEM | HWN10000A | HWN10000U | |
| Overall dimensions | 20.7″×8.1″×9.7″ | 20.7″×8.1″×11.1″ | |
| (L×W×H) | 525mm×206mm ×246mm | 525mm×206mm ×282mm | |
| Net weight (Ibs) | 134.5 | 134.5 | |
| (kgs) | 61.0 | 61.2 |
Overall Dimensions 20.7″ x 8.1″ x 9.9″
(L x W x H) 525mm x 206mm x 252mm
Net Weight 61.0 KGS
