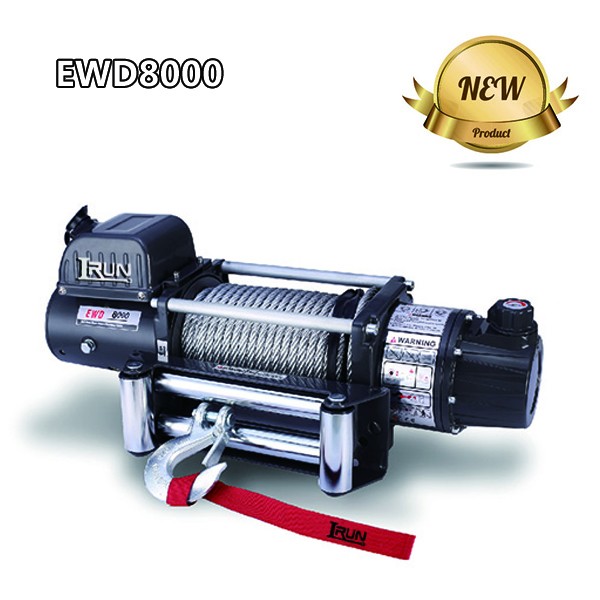

Dual Speed Electric Recovery Winch 8000lbs With New Design Clutch
Model No.: EWD8000
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
EWD SERIES Winch series are perfect two-speed electric winches with Max. Pulling force of 5,500 lbs at high speed. Speed shift and clutch control could be engaged simultaneously to deliver user more convenience.
Dua Speed Electric Recovery Winch 8000 Lbs With New Design Clutch Item No. EWD8000
THis winch is at the rated pulling 8000lbs with two speeds optional in the factual operation. The Speed Shift and clutch control
is our pantent design.
Features:
- Full steel reducer gear.
- Patent three stage planetary gear reducer.
- Two speed and clutch and speed shift structure.
- Clutch and two speed gear actions auto engagement.
- Automatic screw cone braking action.
- Series wound motor.
- Wireless remote control available.
- Remote control through control box and switch.
- DC 12v or DC 24v Power drive optional.
EWD 8000
| Specification: | ||||
| Rated line pull | 8000 lbs (3629 kg) | |||
| Motor: Series wound | 12V:Input: 3.4kW / 4.6hp | |||
| Output: 2.0kW / 2.7hp | ||||
| 24V:Input: 3.1kW / 4.2hp | ||||
| Output: 2.6kW / 3.5hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 4000(1814) | 9.8(3.0) | 10.5(3.2) | 190 | 80 | 2000(907) | 25.9(7.9) | 22.3(6.8) | 245 | 115 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 19.0(5.8) | 300 | 135 |
| 8000(3629) | 7.2(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 17.1(5.2) | 365 | 170 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 8000(3629) | 20.0(6.1) |
| 2 | 6529(2962) | 44.3(13.5) |
| 3 | 5515(2502) | 72.0(22.0) |
| 4 | 4773(2165) | 95.1(29.0) |
| ITEM | EWD 8000U | EWD 8000S | EWD 8000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 77.2lbs / 35.0kg | 83.8lbs / 38kg | 88.2lbs / 40kg |
