Electric Offroad Heavy Duty Winches 15000 Lb With Patent Design Tree Stage Planetary Gear Reducer
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
Electric Offroad Heavy Duty Winches 15000 Lb With Patent Design Tree Stage Planetary Gear Reducer

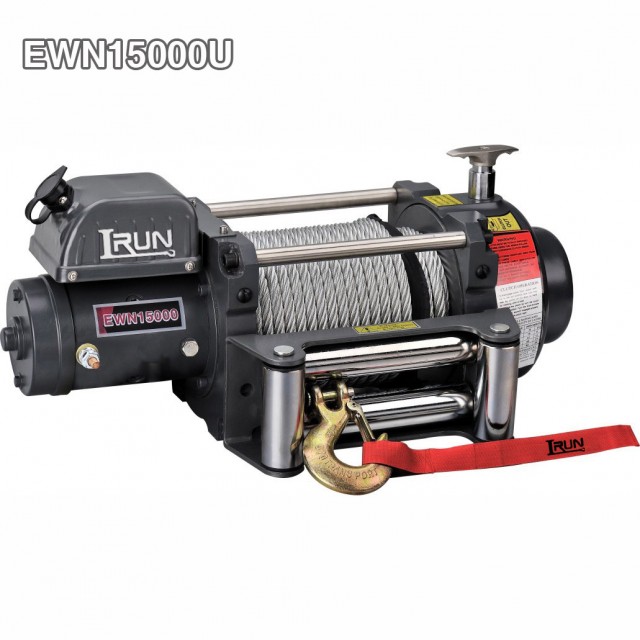

15000 lbs Heavy Duty Electric Winch for Sever offroad or recovery Item No. EWN15000U
This winch as a classic repesentitive of heavy duty electric winch EWN Series is widely applied for for severe offroad or engineering recovery use because of its’ more durable working life, faster line speed and better efficient transmission.
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet |
12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp
24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
|
Overall dimensions
(L×W×H) |
23.3″×8.9″×10.3″(12V)
593mm×226mm×262mm(12V) |
23.3″×8.9″×12.4″(12V)
593mm×226mm×316mm(12V) |
||
|
22.7″×8.9″×10.3″(24V)
576mm×226mm×262mm(24V) |
22.7″×8.9″×12.4″(24V)
576mm×226mm×316mm(24V) |
|||
| Net weight (Ibs) |
162.9
73.8 |
163.3
74.1 |
||
| (kgs) | ||||
Overall Dimensions 23.3″ x 8.9″ x 10.3″
(L x W x H) 593mm x 226mm x 262mm
Net Weight 73.8 KGS
