Electric UTV Winch 4500 Lbs
Packaging: Export carton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
ATV winch 4500lbs

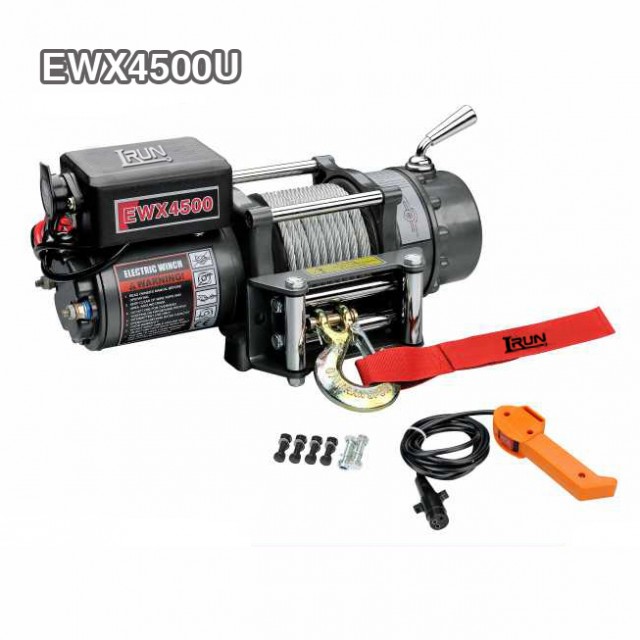

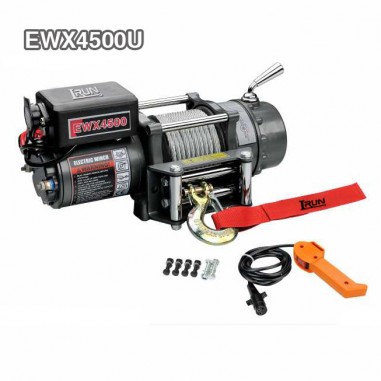

Multifunctional UTV Winch model EWX4500U
This model of ATV winch 4500 Lb is perhaps the commonest among the multifunctional UTV models of us . This assures buyers of both quality and durability. Besides, its accessories are always readily available thus one need not to worry when the winch fails.
In addition to the quality, it also got cool features to kick it up. For instance, this electric UTV Winch ensures surge protection and utilizes low power usage of about 12V. An automatic braking system ensures ease in starting and the stopping of pulling tasks. The EWX4500U model is recommended for one in search of cheap and efficient winches.
Features:
- Full steel reducer gear
- Automatic braking action
- Free spooling clutch
- DC 12V or DC 24V Power drive optional
- Control box detachable fixing
- Remote control through control box and switch
- Wireless remote control available
EWX4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp |
| 24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp | |
| Gear reduction ratio | 172:1 |
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø45mm×93 mm) |
| Mounting bolt pattern | 5.1″×3.78″ (129mm×96 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 7.6(2.3) | |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1196) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1023) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 | |||
| ITEM | EWX4500D | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378m×126mm ×165mm | 378m×126mm ×165mm | 378m×126mm ×165mm |
| Net weight (Ibs) | 27.8 | 28.7 | 28.7 |
| (kgs) | 12.6 | 13.0 | 13.0 |
Overall Dimensions 14.9” x 5.0″ x 6.5″
(L x W x H) 378mm x 126mm x 165mm
Net Weigh: 13 KGS
