- Description

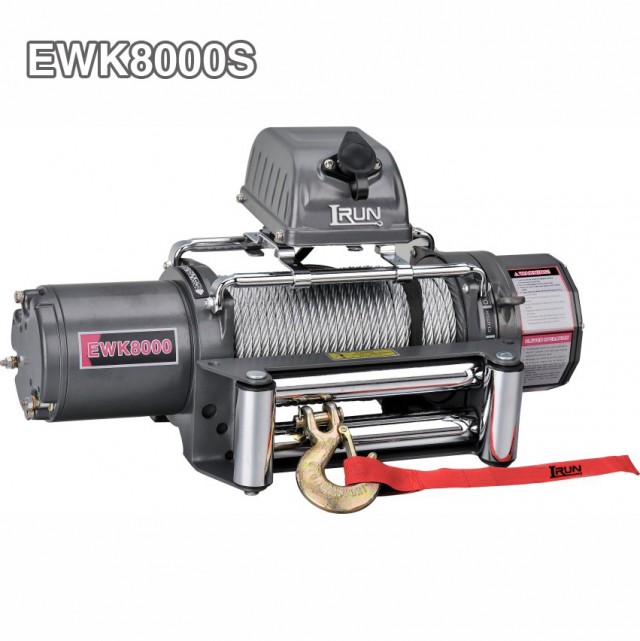

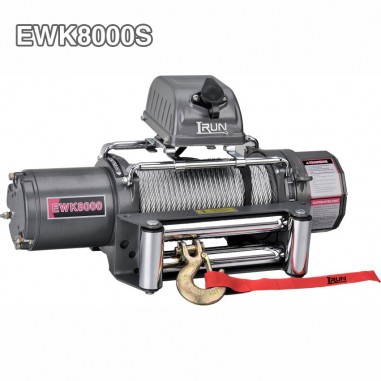

EWK8000S
We recommend you that our Model No. EWK8000S- 8000 lbs Electric Winch is our first generation winch product.The winch box for EWK8000S is tied on the winch bar. It still keeps a hot selling because of stable quality,fine performance and attractive price.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet |
12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp
24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions |
21.9″×7.1″×9.6″
555mm×180mm×243mm |
21.2″×7.1″×11.7″
538mm×180mm×297mm |
21.2″×7.1″×10.6″
538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
63.5
28.8 |
64.2
29.1 |
68.1
31.0 |
| (kgs) |
Looking for ideal 4×4 Winch for Sale Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 8000 Winch for 4×4 are quality guaranteed. We are China Origin Factory of Electric Winch 8000 Lb. If you have any question, please feel free to contact us.
