Full Steel Gear Hydraulic Car Trailer Winch 10000 Lbs Meets SAEJ706 and CE standards

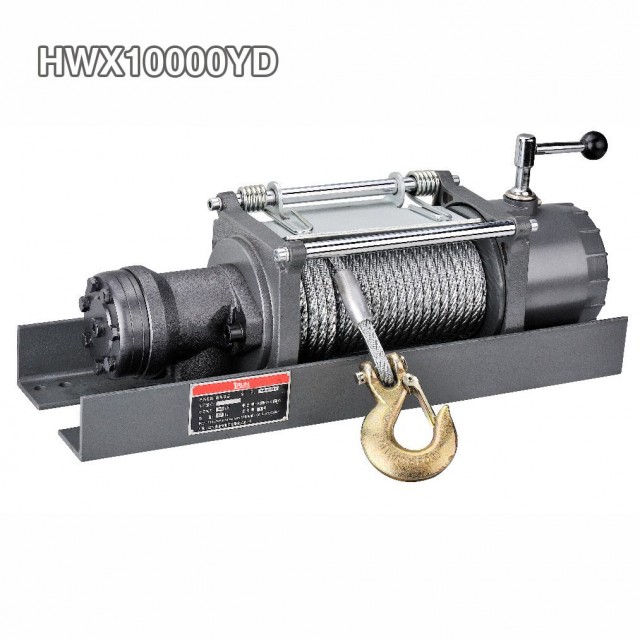

10000 lbs Hydraulic Car Trailer Winch Item No.HWX10000YD Winching Capacity of up to 10000lbs

with features:

• Popular winch for tow,utility and trailer applications
• Patented hardened steel,two-stage planetary gear reducer
• Meets SAEJ706 and CE standars
• Wire rope,Roller failead,Steel Winch bracket and SWR tensioner supplied
• Automatic scew cone braking action.

HWX10000YD

SPECIFICATION
Rated line pull	10000lbs(4536kgs)
Motor: permanent magnet	50ml/r
Oil Flow	15~40L/min
Pressure	12.5Mpa
Gear reduction ratio	28:1
Cable (Dia.× L)	Ø3/8 “×85 ‘ (Ø9.2mm×26m)
Drum size (Dia.× L)	Ø2.6″×8. 5″ (Ø66mm×217mm)
Mounting bolt pattern	21.7″×19.7 ” ×4.5 ” (550mm×500mm×114.3mm) 4-M12

Line pull lbs (kgs)	Pressure Mpa(Psi)	Flow G/min (L/min)	Line speed ft/min(m/min)
0	2.0(290.1)	4.0(15)	7.2(2.2)
4000(1814)	3.9(565.6)	6.6(25)	12.5(3.8)
6000(2722)	7.5(1087.7)	9.2(35)	17.7(5.4)
8000(3629)	10.5(1522.8)	10.6(40)	20.0(6.1)
10000(4536)	12.5(1812.9)	/	/

Layer of cable	Rated line pull lbs(kgs)	Total rope on drum ft (m)
			1	10000(4536)	17.4 (5.3)
2	7969(3615)	39.4 (12.0)
3	6624(3005)	65.0 (19.8)
4	5667(2571)	85.3(26.0)

ITEM	HWX10000YD
Overall dimensions	22.8″ (L)×7.9″ (W)×9.5″ (H)
(L×W×H)	580(L) mm×201 (W) mm×242(H) mm
Net weight (Ibs)	96.3
(kgs)	43.7

Looking for ideal Trailer Winch  10000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Car Trailer Winches  are quality guaranteed. We are China Origin Factory of Hydraulic Trailer Winch. If you have any question, please feel free to contact us.
