Handlebar Switch Control ATV Winch 2000lbs
Packaging: Export Carton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

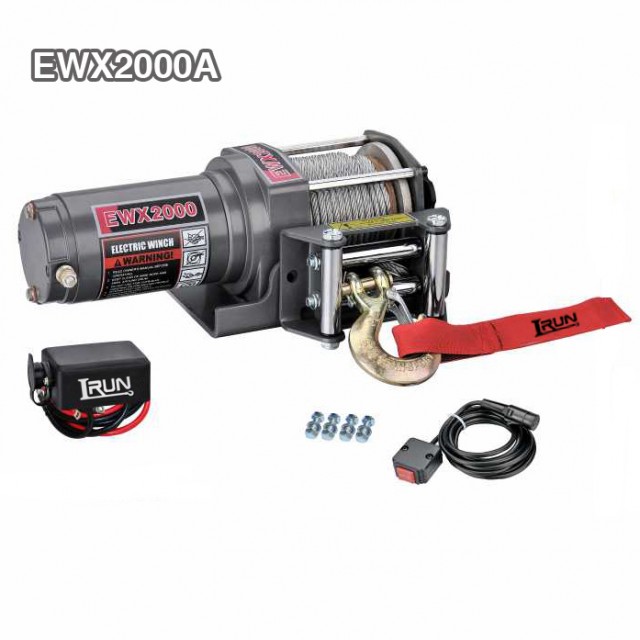

Model No. EWX2000A ATV winch.
If you are looking for some cheap, easy to handle and durable 12V ATV winches, then you had better think of acquiring a pack of 2000 pound ATV Winches from us. The ATV winch2000 Lb is a true definition of advanced winch technology.
Imagine of a system of braking that is automated and incorporated in a 12v ATV winch. Besides the braking system, the winch can also be controlled remotely by a wireless connection. The control box of theATV winch2000 Lb is detachable making its control even more convenient.
Features:
1.)Full steel reducer gear
2) Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V power drive optional
5.)High current working switch control directly
6.)ATV Handlebar switch control
7.)Control box detachable fixing optional
8.)Control box separate fixing optional
9.)Remote control through contorl box and switch
10.) Wireless remoto control avilable
EWX2000
| SPECIFICATION | |
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |
Overall dimensions: 11.5″x4.5″x4.3″
(LxWxH) 292x113x108mm
Net Weight: 8.5KGS
Looking for idealATV winch2000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 2000 PoundATV Winchesare quality guaranteed. We are China Origin Factory of 12v ATV Winch. If you have any question, please feel free to contact us.
