Heavy Duty Hydraulic Recovery Winch 12000 Lbs Come With Electric Valave and Rubber oil Hose
Packaging: Export Caton
Brand:OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

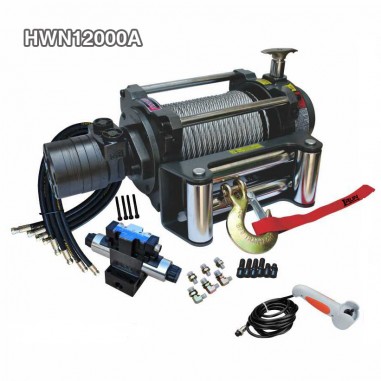

Heavy Duty Hydraulic Recovery Winch 12000 Lbs Come With Electric Valave and Rubber oil Hose
Item No . HWN12000A —– 12000 lbs Hydarulic Winch
The Winch come with a a rated line pull of 12000 lbs and a electric valve installed on the motor. The winch is equipped with a Heavy duty automatic bracking action for safe operation,and patented hardened steel two stage planetary gear reducer provides high efficient transmission. Each winch come along a wire rope with hook,a roller failread and a set of Hydraulic Accessories.
Features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
HWN12000A
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 14Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8″×8. 6″ (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) |
| 3000(1361) | 3.4(453.1) | 2.6(10.0) | 4.6(1.4) |
| 6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) |
| 10000(4536) | 11.5(1668.0) | 9.2(35.0) | 15.1(4.6) |
| 12000(5443) | 14.0(2030.6) | 10.6(40.0) | 17.4(5.3) |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 12000(5443) | 16.4 (5.0) | |
| 2 | 10595(4806) | 37.2(11.3) | |
| 3 | 9485(4302) | 60.9(18.6) | |
| 4 | 7904(3585) | 83.7(25.5) |
| ITEM | HWN12000A | HWN12000U | |
| Overall dimensions | 20.7″×8.1″×9.7″ | 20.7″×8.1″×11.1″ | |
| (L×W×H) | 525mm×206mm×246mm | 525mm×206mm×282mm | |
| Net weight (Ibs) | 139.0 | 139.3 | |
| (kgs) | 63.0 | 63.2 |
Overall Dimensions 20.7″ x 8.1″ x 9.9″
(L x W x H) 525mm x 206mm x 252mm
Net Weight 63.0 KGS
