- Description

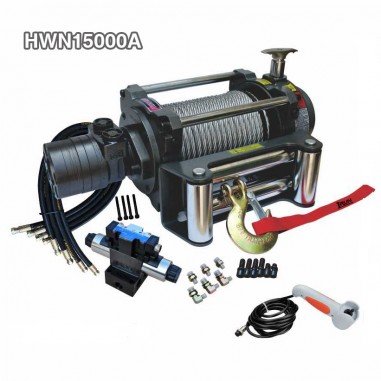

15000 lbs Hydraulic Winch Item No. HWN 15000A
It has 15000 lb pulling capacity and a seperated elelectric valve
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patented hardened steel two stage planetary gear reducer which provides high efficient transmisson. Each winch come along with wire a rope,a roller failread and a set of Hydraulic Accessories.
Features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
HWN15000A
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804kgs) |
| Motor: permanent magnet | 80ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5″×8. 5″ (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 15000(6804) | 18.0 (5.5) | |
| 2 | 12120(5498) | 40.7(12.4) | |
| 3 | 10168(4612) | 65.9(20.1) | |
| 4 | 8757(3972) | 86.9(26.5) |
| ITEM | HWN15000A | HWN15000U | |
| Overall dimensions | 21.5″×8.9″×10.3″ | 21.5″×8.9″×11.5″ | |
| (L×W×H) | 547mm×226mm 262mm | 547mm×226mm×292mm | |
| Net weight (Ibs) | 151.5 | 152 | |
| (kgs) | 68.5 | 68.8 |
Overall Dimensions 21.0″ x 8.9″ x 10.7″
(L x W x H) 534mm x 226mm x 272mm
Net Weight 68.5 KGS
