Industrial Hydraulic Towing Winch 15000 lb Meet European EN standard
Packaging: PALLET
Brand:OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

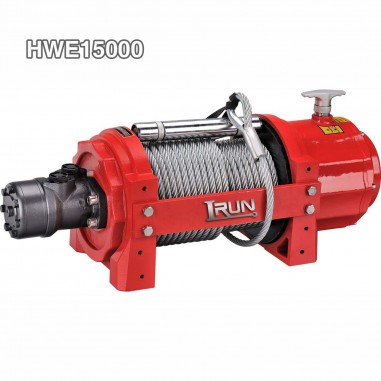

Industrial Hydraulic Towing Winch 15000 lb Meet European EN standard ITEM NO. HWE15000
Perfect for Most Tow, Utility and trailer Applications
We specially introduced our new Series HEW15000 Industrial Hydraulic Winches which has 15,000lb pulling capacity. This winch also features a large displacement high performance motor,and that Pawl braking system placed within the gear reducer ensures the whole reliability and provide convenient maintenance in engineering application.
Features:
1.) Meet European EN stardard
2.) Planetary gaear, with efficient transmission
3.) Overhead type clutch operation, simple and reliable
4.) Drum will not become hot after long time use
5.) Special design for Industry use
HWE15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804kgs) |
| Motor: permanent magnet | 160ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 17.5Mpa |
| Gear reduction ratio | 17.2:1 |
| Cable (Dia.× L) | Ø15/32″×86.9 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø5.0 “×10.5” (Ø127mm×266mm) |
| Mounting bolt pattern |
12.0 “×4.5 ” (303.5mm×114.3mm)
14.5 “×6.7” (368.5mm×171.2mm) 8-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290) |
1.3(5) |
1.4(0.7) |
|
4000(1814) |
4.6(667) |
2.6(10) |
4.3(1.3) |
|
6000(2722) |
6.9(1000) |
5.3(20) |
8.9(2.7) |
|
8000(3629) |
9.2(1334) |
7.9 (30) |
13.1(4.0) |
|
10000(4536) |
11.5(1667) |
10.6(40) |
17.4(5.3) |
|
12000(5443) |
14.0(2030) |
13.2(50) |
22.0(6.7) |
|
12000(5443) |
14.0(2030) |
15.6 (60) |
26.2(8.0) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
15000(6804) |
29.5(9.0) |
|
|
2 |
12791(5807) |
65.6(20.0) |
|
|
3 |
11150 (5062) |
86.9(26.5) |
| ITEM | HWE15000 | ||
| Overall dimensions | 28.5″×12.3″×12.0″ | ||
| (L×W×H) | 723mm×312mm ×304mm | ||
| Net weight (Ibs) | 227 | ||
| (kgs) | 103 |
Looking for ideal Industrial Hydraulic Winches Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Hydraulic Winches for Trucks are quality guaranteed. We are China Origin Factory of Hydraulic Truck Winch. If you have any question, please feel free to contact us.
