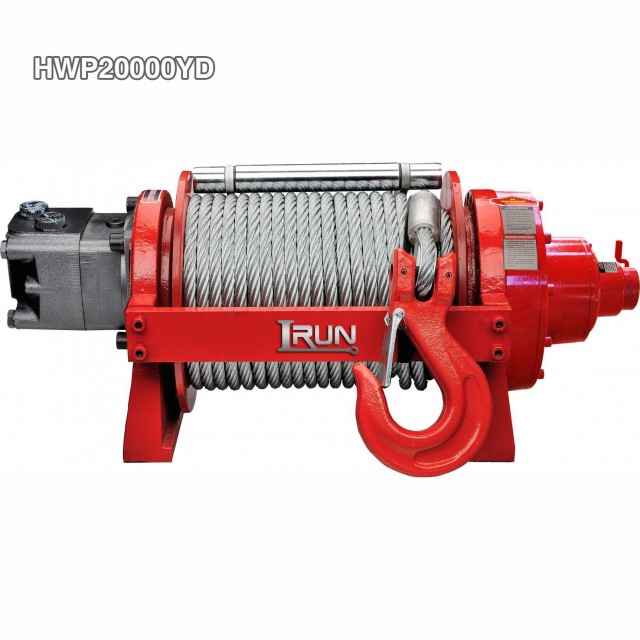

20000 lbs Hydraulic Winch   Item No.: HWP20000YD

This winch has a 20,000lb pulling capacity with manual clutch.It`s equipped with Automatci screw multi-disc brake designed to hold the full-rated load, and high strength hardened two stage planetary gear reducer provides for dual speeds optionoal and relibality. Besides Hook, Wire rop and SWR tensioner.

Specfication:

1.Rated line pull:    20000 lbs (9072)

2. Motor displacement:  100ml/r

3. Oil flow: 15-75L/min

4. Pressure:  17.5MPa

5.Gear reduction ratio:   High speed 6:1 Low speed 39:1

6.Cable (Dia xL ):  9/16″ x157″  ( 14mmx48mm)

6. Drum Size (Dia x L): 5.4″x12.4″ ( 138mmx316mm)

7. Mounting bolt pattern: 17.0″x2.5″x7.6″ (431mmx64mmx192mm)8-M14

There’re other models with different  clutch style available:

Item No. HWP20000Y1D  (Air clutch, single Speed)

Item NO. HWP20000Y2D ( Air and manual mixed clutch, single speed)

Item No. HWP 20000Y3D (AIR clutch and air actions of two speed )

Features:
1. Free steel reducer gear
2. Runva patent two stage planetary gear reducer
3. Two speed and clutch integrate with one handgrip
4. Patent clutch and speed shift structure
5. Clutch and two speed gear actions auto engagement
6. Automatic screw actions multi-disc brake
7. SWR tensioner supplied

Overall Dimensions 32.1″ x 14.1″ x 12.0″
(L x W x H) 815mm x 360mm x 305mm

Net Weight 163 KGS
