Multifuctional Electric UTV winch 4500 lbs
Packaging: Export carton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

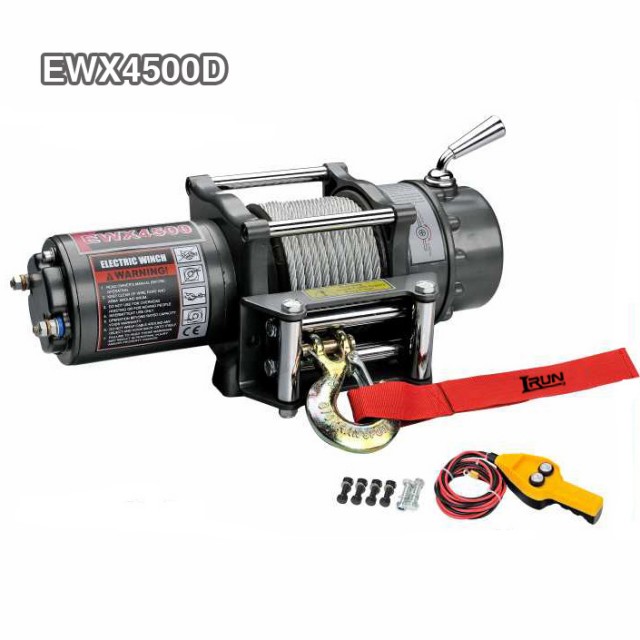

Multifuctional Electric UTV Winch 4500 lbs model EWX4500D
A transformation from the 3000Lb winches to the electric UTV 4500 poundwinch moves the capabilities of the winches from just super to mega capabilities. The EWX4500D model has a weight of about 12.6 KGs and is approximately 15 inches long. Though still small and lightweight, the winch can move up to 2041KGs of loads. This makes it the current [big boy” in moving heavy loads.
It being a waterproof UTV Winch, is has a longer lifespan when compared to other winches as it is capable to resist rust. If you really want to move heavy loads, the 4500 pound ATV winch is your solution.
Features:
- Full steel reducer gear
- Automatic braking action
- Free spooling clutch
- DC 12V or DC 24V Power drive optional
- Control box detachable fixing
- Remote control through control box and switch
- Wireless remote control available
EWX4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp |
| 24V:Input: 2.9 kW / 3.9hp; Output: 1.3kW / 1.7hp | |
| Gear reduction ratio | 172:1 |
| Cable (Dia.× L) | Ø15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø1.77″×3.8″ (Ø45mm×93 mm) |
| Mounting bolt pattern | 5.1″×3.78″ (129mm×96 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 7.6(2.3) | |
| 0 | 11.6(3.6) | 12.5(3.8) | 20 | 15 | 2 | 3642(1652) | 17.0(5.2) |
| 1500(680) | 9.2(2.8) | 10.5(3.2) | 70 | 40 | 3 | 3060(1388) | 27.0(8.3) |
| 2500(1134) | 7.8 (2.4) | 8.5(2.6) | 100 | 65 | 4 | 2638(1196) | 38.6(11.8) |
| 3500(1588) | 6.6(2.0) | 7.2(2.2) | 140 | 80 | 5 | 2254(1023) | 47.6(14.5) |
| 4500(2041) | 4.9(1.5) | 5.9(1.8) | 200 | 130 | |||
| ITEM | EWX4500D | EWX4500A | EWX4500U |
| Overall dimensions | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ | 14.9″×5.0″×6.5″ |
| (L×W×H) | 378m×126mm ×165mm | 378m×126mm ×165mm | 378m×126mm ×165mm |
| Net weight (Ibs) | 27.8 | 28.7 | 28.7 |
| (kgs) | 12.6 | 13.0 | 13.0 |
Overall Dimensions: 14.9″x5.0″x6.5″
(L x W x H) 378mm x 126mm x 165mm
Net Weight: 12.6 KGS
Looking for ideal 4500 Pound ATV winch Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Electric UTV Winch 4500 Pound are quality guaranteed. We are China Origin Factory of Waterproof UTV Winch. If you have any question, please feel free to contact us.
