- Description

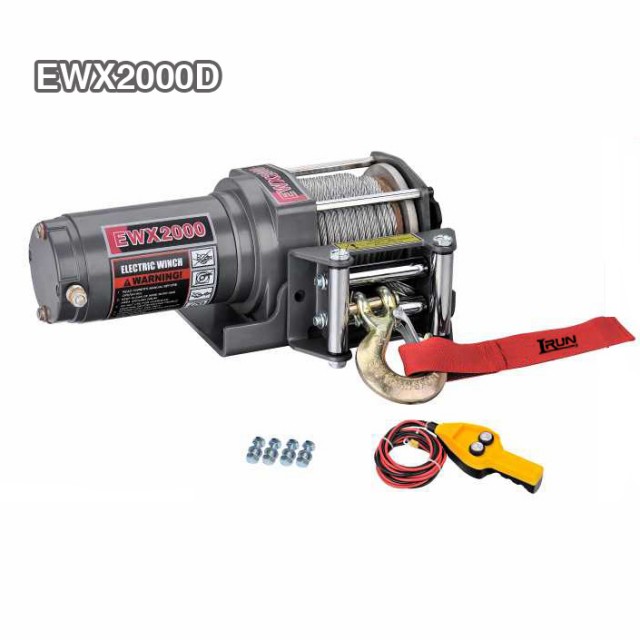

The Electric and Wireless ATV winch2000lbs Item No.EWX2000D
This version of ATV winch2000 Lb comes compactly packed with amazing capabilities which simplifies your work from just simple to very simple.
Besides having a reducer gear of pure steel and a light weight of about 8.1KGs, the ATV winch2000lbs is capable of moving up to 907KGs of loads. What makes it even more appealing is its ease of the winding clutch and the ability to utilize the power supplied to it. This winch makes the best option among the movers of medium sized weights.
Features:
1.)Full steel reducer gear
2) Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V power drive optional
5.)High current working switch control directly
6.)ATV Handlebar switch control
7.)Remote control through contorl box and switch
8.) Wireless remoto control avilable
EWX2000
| SPECIFICATION | |
| Rated line pull | 2000 lbs (907 kgs) |
| Motor: permanent magnet | 12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp |
| 24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia.× L) | Ø5/32″×49′(Ø4mm×15m) |
| Drum size (Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX2000D | EWX2000A | EWX2000U |
| Overall dimensions | 11.5″×4.5″×4.3″ | 11.5″×4.5″×4.3″ | 12.1″×4.5″×5.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 17.8 | 18.6 | 18.4 |
| (kgs) | 8.1 | 8.5 | 8.4 |
Overall dimensions: 11.5″x4.5″x4.3″
(LxWxH) 292x113x108mm
Net Weight: 8.1kgs
