EWB SERIES WINCH

EWB series winch are reliable performance electric winches with innovative brake. High-efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.

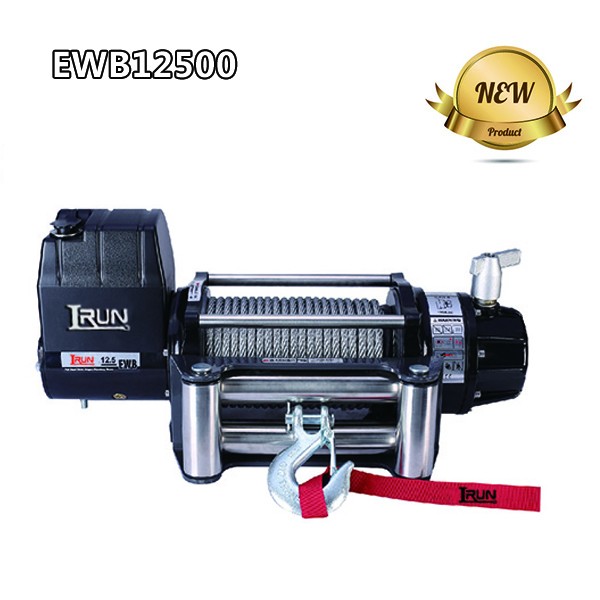

12500 lbs Offroad Electric Winch Item No. EWB12500

Features:

1.）All-new patented waterproof design meets IP67 standards.

2.）Innovative brake inside the gearbox, offers excellent safe, reliable performance.

3.）Stainless steel rotary clutch for smooth and convenient operations.

4.）Stainless steel out-installed screws.

5.）Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.

6.）Copper connection sealed control pack with elegant appearance.

7.）High –efficient transmission delivers 9m/min pull-in speed and power saving.

8.）Over-current protection available for safe winching.

9.）Compression-resisted rubber hand remote control.

• EWB 12500


  Specification:
  	Rated line pull		12500 lbs (5670 kg)
  	Motor: Series wound		12V:Input: 5.9kW / 7.9hp
  			Output: 2.4kW / 3.2hp
  			24V:Input: 4.8kW / 6.4hp
  			Output: 3.1kW /4.2hp
  	Gear reduction ratio		228:1
  	Cable (Dia.× L)		Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m)
  	Drum size (Dia.× L)		Ø2.48 “×8.5 ” (Ø63mm×217 mm)
  	Mounting bolt pattern		10 “×4.5 ” (254mm×114.3 mm) 4-M10



  Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
  Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
  	12V DC	24V DC	12V DC	24V DC		1	12500(5670)	16.1(4.9)
  0	32.8 (10.0)	34.8 (10.6)	75	60		2	9776(4434)	36.4(11.1)
  3000(1361)	15.7 (4.8)	17.4 (5.3)	190	85		3	8026(3641)	60.0(18.3)
  9000(4082)	8.2 (2.5)	10.2 (3.1)	360	150		4	6808(3088)	83.7(25.5)
  12500(5670)	5.2 (1.6)	6.9 (1.9)	490	200



  ITEM	EWB 12500U	EWB 12500F
  Overall dimensions	23.7″×6.3″×10.0″	23.7″×6.3″×9.8″
  (L×W×H)	601mm×160mm×254mm	601mm×160mm×248mm
  Net weight (Ibs/kg)	94.6lbs / 42.9kg	97.2lbs / 44.1kg

•
