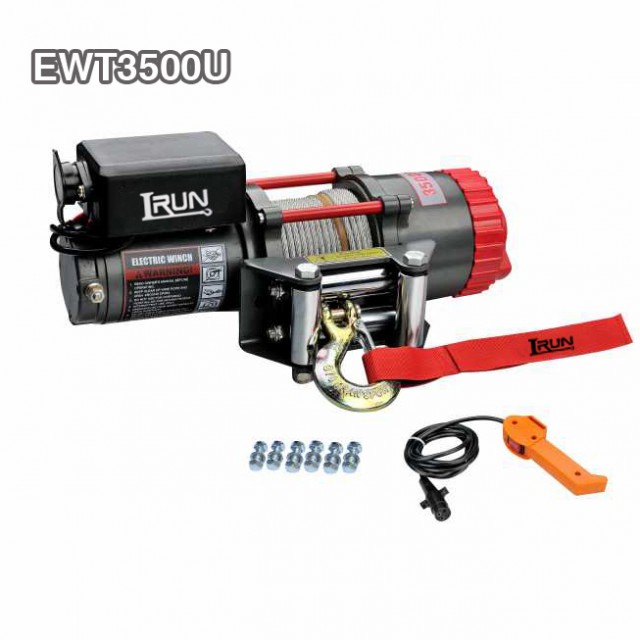

Electric UTV Winch 3500lb Item No.EWT3500U

Features:

1. 3-stage planetary steel gear reducer.
2. control box fixed on the winch motor

3.Patent design cam clutch .

4. Free spooling clutch
5. Automatic screw cone braking action
6. DC 12V or DC 24V Power drive optional
7. High crrunt working switch control directly
8. ATV handlebar switch controlW

9. Wireless remote control available.

EWT3500

SPECIFICATION
Rated line pull	3500 lbs (1588 kgs)
Motor: permanent magnet	12V:Input: 2.0kW / 2.7hp; Output: 0.9 kW / 1.2hp 24V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp
Gear reduction ratio	166:1
Cable (Dia.× L)	Ø 7/32″×44.0′ (Ø5.4mm×13.4m)
Drum size (Dia.× L)	Ø 2.0″×3.2″ (Ø50.4mm×82 mm)
Mounting bolt pattern	3.13″ (79.5 mm) 2-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	3500(1588)	8.5(2.6)
0	14.4(4.4)	14.4(4.4)	28	14	2	2932(1331)	18.7(5.7)
1000(454)	9.8(3.0)	11.1(3.4)	80	50	3	2523(1145)	29.8(9.1)
2500(1134)	7.2(2.2)	8.8(2.7)	150	70	4	2214(1005)	44.0(13.4)
3500(1588)	5.9(1.8)	4.9(1.5)	170	100	5



ITEM	EWT3500D	EWT3500A	EWT3500U
Overall dimensions	14.3″×4.5″×4.8″ 368mm×115mm×123 mm	14.3″×4.5″×4.8″ 368mm×115mm×123 mm	14.6″×4.5″×6.3″ 372mm×115mm×160 mm
(L×W×H)
Net weight (Ibs)	24.7	27.1	26.9
(kgs)	11.2	12.3	12.2

Overall dimensions: 14.6″x4.5″x6.3″

(LxWxH) 372mmx115mmx160mm

Net Weight: 12.2 kgs
