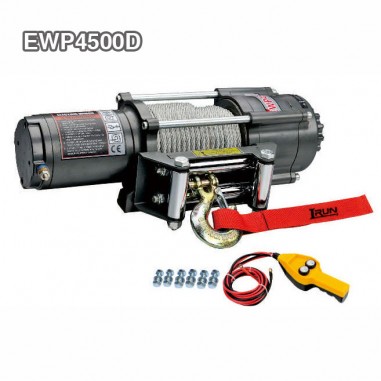

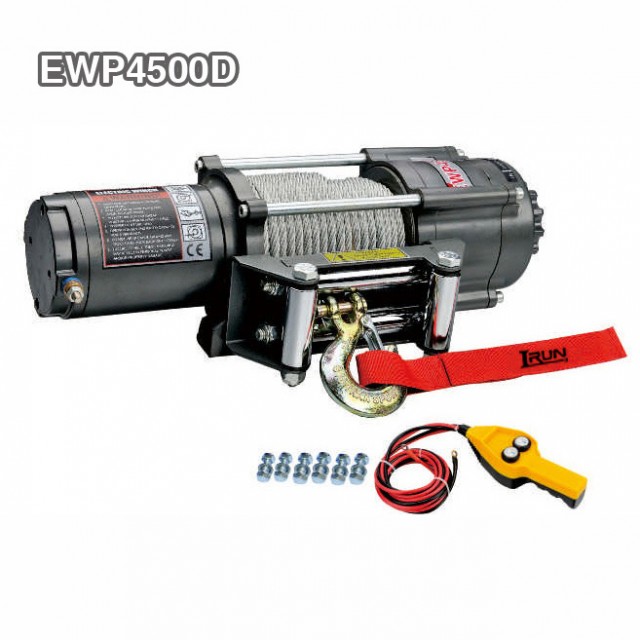

4500 lbs Electric UTV Winch Item No.EWP4500D

Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available

EWP4500

SPECIFICATION
Rated line pull	4500 lbs (2041 kgs)
Motor: permanent magnet	12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW/1.4hp
	24V:Input: 2.6kW / 3.5hp; Output: 1.2kW/1.5hp
Gear reduction ratio	166:1
Cable (Dia.× L)	Ø 15/64″×47.6′ (Ø6mm×14.5m)
Drum size (Dia.× L)	Ø 2.0″×4.9″ (Ø50.4mm×125mm)
Mounting bolt pattern	6.6″×3″ (168mm×76.2mm)4-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	4500(2041)	12.2(3.7)
0	12.8(3.9)	13.2(4.0)	28	14	2	3841(1742)	26.2(8.0)
1000(454)	9.8(3.0)	10.9(3.3)	80	50	3	3310(1501)	41.9(12.8)
2000(907)	8.5(2.6)	9.4(2.9)	120	70	4	2907 (1319)	47.6(14.5)
3000(1361)	6.9(2.1)	7.6(2.3)	160	95
4500(2041)	4.6(1.4)	5.5(1.6)	220	110



ITEM	EWP4500D	EWP4500A	EWP4500U
Overall dimensions	16.38″×4.92″×4.85″	16.38″×4.92″×4.85″	16.46″×4.92″×6.6″
(L×W×H)	416mm ×125mm ×123 mm	416mm ×125mm ×123 mm	418mm ×125mm ×168 mm
Net weight (Ibs)	33.3	34.2	34.2
(kgs)	15.1	15.5	15.5

Overall dimensions: 16.38″x4.92″x4.85″

(LxWxH) 416mmx125mmx123mm

Net Weight: 15.1 kgs
