Series Wound Motor Heavy Duty Electric Offroad Winches 12000lbs
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

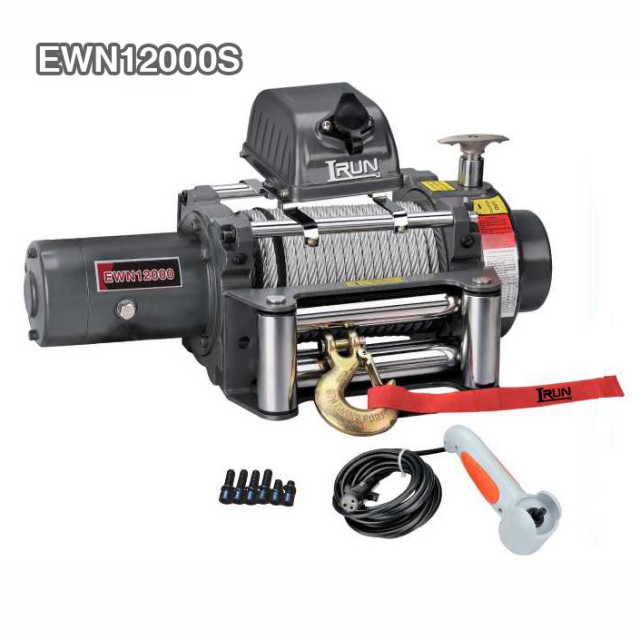

EWN12000S
12000 lbs Heavy Duty Electric Winch
Heavy Duty Electric Offraod Recovery Winch Item No. EWN12000U Winching Capacity of up to 12000lbs
Each winch come along with a control box, a wire rope with hook,a roller failread accessories.
This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.
Heavy Duty Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our EWX Series.They’re widely applied for severe offroad or engineering use.
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
EWN12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet |
12V:Input: 5.4kW / 7.2hp;Output: 2.1kW /2.8hp
24V:Input: 5.3kW / 7.1hp;Output: 2.5 kW /3.4hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 18.4(5.6) | |
| 0 | 16.4(5.0) | 17.7(5.4) | 80 | 40 | 2 | 9800(4445) | 41.0(12.5) |
| 6000(2722) | 7.54(2.3) | 7.9(2.4) | 260 | 110 | 3 | 8300(3765) | 65.6(20.0) |
| 8000(3629) | 6.4(1.95) | 6.6(2.0) | 310 | 145 | 4 | 7200(3266) | 83.7(25.5) |
| 10000(4536) | 5.74(1.75) | 5.9(1.8) | 380 | 185 | |||
| 12000(5443) | 4.76(1.45) | 5.6(1.7) | 450 | 220 | |||
| ITEM | EWN12000U | EWN12000S | |
| Overall dimensions |
22.6″×8.1″×9.7″
573mm×206mm×246mm |
22.6″×8.1″×11.8″
573mm×206mm×299mm |
|
| (L×W×H) | |||
| Net weight (Ibs) |
132.3
61 |
132.4
61.3 |
|
| (kgs) |
Overall Dimensions 22.6″ x 8.1″ x 11.8″
(L x W x H) 573mm x 206mm x 299mm
Net Weight 61.3 KGS
