- Description

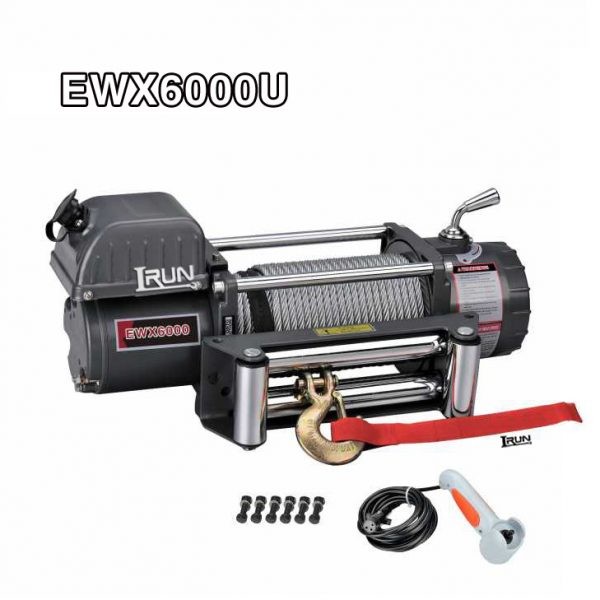

EWX6000U
6000 lbs Electric Recovery Winch with a control box installed on winch motor NO. EWX6000U .
It’s ideal for small car or Jeep. It comes from our winch recovery EWX Series with these advantages perfect efficiency,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Permanent magent motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available
9. SWR tensioner available
EWX6000U
SPECIFICATION | |
Rated line pull | 6000 lbs (2722kgs) |
Motor: Series Wound | 12V:Input: 2.8 kW / 3.7hp; Output: 1. 6 kW / 2.1hp |
24V:Input: 2.9kW / 3.9hp; Output: 1.7 kW / 2.3hp | |
Gear reduction ratio | 280:1 |
Cable (Dia.× L) | Ø9/32 “×105 ‘ (Ø7.2mm×32m) |
Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 6000(2722) | 22.0(6.7) | |
0 | 12.8(3.9) | 14.1 (4.3) | 45 | 30 | 2 | 4979(2258) | 47.9(14.6) |
2000(907) | 8.2 (2.5) | 8.8 (2.7) | 100 | 45 | 3 | 4255(1930) | 77.1(23.5) |
4000(1814) | 7.2 (2.2) | 7.9 (2.4) | 150 | 80 | 4 | 3714(1685) | 105.0(32.0) |
6000(2722) | 5.9 (1.8) | 6.9 (2.1) | 230 | 120 |
ITEM | EWX6000U | EWX6000S | |
Overall dimensions | 21.4″×6.3 “×10.0 “ | 20.8″×6.3 “×11.1 “ | |
(L×W×H) | 544mm×160mm×254mm | 527mm×160mm×283mm | |
Net weight (Ibs) | 66.1 | 67.2 | |
(kgs) | 30.0 | 30.5 |
Overall Dimensions:21.4″ x 6.3″ x 10″
(L x W x H) 544mm x 160mm x 254mm
Net Weight:30.0 KGS
Looking for ideal 6000lb Recovery Winches Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Recovery Car Winch are quality guaranteed. We are China Origin Factory of 12v Car Winches. If you have any question, please feel free to contact us.
