Short Drum 9500 lb Electric Reovery Winch
Packaging: Export Caton
Brand: OEM order acceptable
Place of Origin: China
Certificate: CE Certificate
- Description

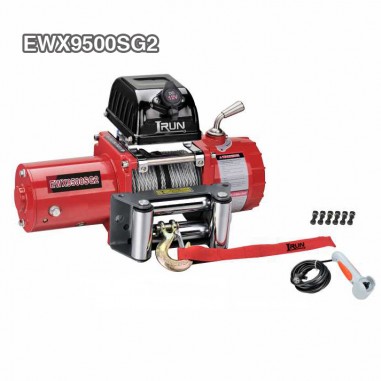

EWX9500SG2
9500 lbs Electric Winch with Short Drum
Short Drum 9500 lbs Electric Winch control box tied on winch bar Model NO. EWX9500SG2 is a sensible option for those cuostomers have the requirement on the winch installation space ,however perfer to a more powerful pulling . It also has EWX Series features such as perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500SG2
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: permanent magnet | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×45.9 ‘ (Ø9.2mm×14.0m) |
| Drum size (Dia.× L) | Ø2.48 “×4.7 ” (Ø63mm×120mm) |
| Mounting bolt pattern | 5.9 “×4.5 ” (151mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 9.8(3.0) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 24.6 (7.5) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 42.7(13.0) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 45.9 (14.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500SG2 | ||
| Overall dimensions | 17.2″×6.3″×11.1″ | ||
| (L×W×H) | 437mm×160mm×283mm | ||
| Net weight (Ibs) | 65.0 | ||
| (kgs) | 29.5 |
Overall Dimensions：17.2″ x 6.3″ x 11.1″
(L x W x H) 437mm x 160mm x 283mm
Net Weight：29.5 KGS
