Stand Up Control Box Offroad 4×4 Electric Winch 9500 Lbs With Supper Power
Model No.: EWB9500F-SR
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

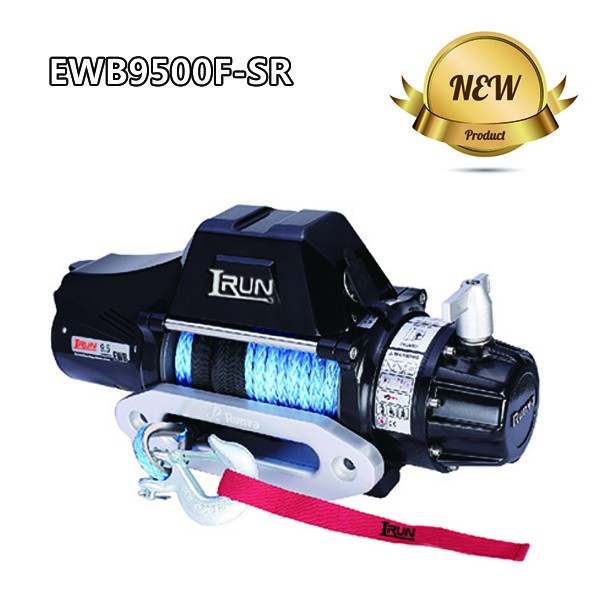

Electric Winch 9500 lbs Item No. EWB9500F-SR
This Model has a rated line pull of 9500lbs. It’s a hot seller model because of features of high performance with innovative brake. High-efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.
Features:
- All-new patented waterproof design meets IP67 standards.
- Innovative brake inside the gearbox, offers excellent safe, reliable performance.
- Stainless steel rotary clutch for smooth and convenient operations.
- Stainless steel out-installed screws.
- Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
- Copper connection sealed control pack with elegant appearance.
- High –efficient transmission delivers 9m/min pull-in speed and power saving.
- Over-current protection available for safe winching.
- Compression-resisted rubber hand remote control.
- Synthetic Rope and Aluminium fairlead are supplied
EWB9500F-SR
| Specification: | ||||
| Rated line pull | 9500 lbs (4309 kg) | |||
| Motor: Series wound | 12V:Input: 4.6kW / 6.1hp | |||
| Output: 2.1kW / 2.8hp | ||||
| 24V:Input: 6.5kW / 8.7hp | ||||
| Output: 2.8kW / 3.8hp | ||||
| Gear reduction ratio | 228:1 | |||
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.5 ” (Ø63mm×217 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | |||||||
|
Line Pull
Lbs. (kg) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
Lbs. (kg) |
Total Rope On Drum
ft (m) |
|||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | ||
| 0 | 32.2 (9.8) | 34.4 (10.5) | 75 | 65 | 2 | 7706(3495) | 39.4(12.0) | |
| 3000(1361) | 14.8 (4.5) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) | |
| 6000(2722) | 10.5(3.2) | 12.5 (3.8) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) | |
| 9500(4309) | 6.6(2.0) | 9.2(2.8) | 380 | 270 | ||||
| ITEM | EWB9500F | |
| Overall dimensions | 22.6″×6.3″×9.8″ | |
| (L×W×H) | 574mm×160mm×248mm | |
| Net weight (Ibs/kg) | 81.7lbs / 39.5kg |
