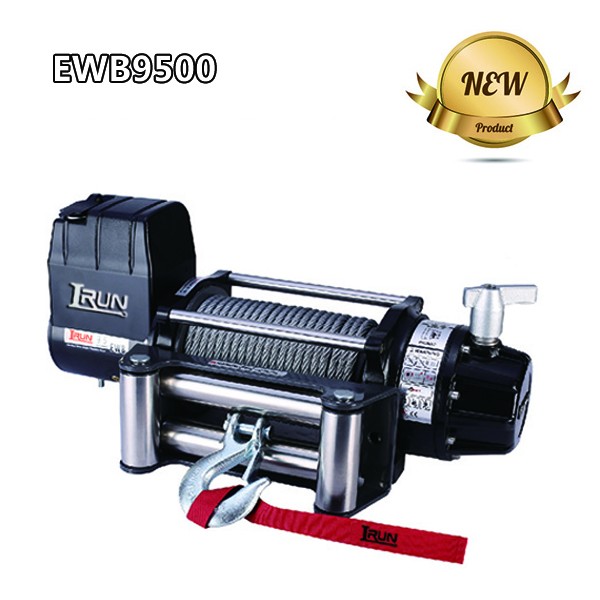

9500 lbs Electric 4×4 Winch  ITEM NO. EWB9500

It’s a reliable performance 9500 lbs electric winch with innovative brake. High-efficient transmission delivers high

pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.

Features:

• All-new patented waterproof design meets IP67 standards.
• Innovative brake inside the gearbox, offers excellent safe, reliable performance.
• Stainless steel rotary clutch for smooth and convenient operations.
• Stainless steel out-installed screws.
• Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
• Copper connection sealed control pack with elegant appearance.
• High –efficient transmission delivers 9m/min pull-in speed and power saving.
• Over-current protection available for safe winching.
• Compression-resisted rubber hand remote control.
• EWB 9500


  Specification:
  	Rated line pull		9500 lbs (4309 kg)
  	Motor: Series wound		12V:Input: 4.6kW / 6.1hp
  			Output: 2.1kW / 2.8hp
  			24V:Input: 6.5kW / 8.7hp
  			Output: 2.8kW / 3.8hp
  	Gear reduction ratio		228:1
  	Cable (Dia.× L)		Ø3/8″×85 ‘ (Ø9.2mm×26m)
  	Drum size (Dia.× L)		Ø2.48 “×8.5 ” (Ø63mm×217 mm)
  	Mounting bolt pattern		10 “×4.5 ” (254mm×114.3 mm) 4-M10



  Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
  Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
  	12V DC	24V DC	12V DC	24V DC		1	9500(4309)	17.4(5.3)
  0	32.2 (9.8)	34.4 (10.5)	75	65		2	7706(3495)	39.4(12.0)
  3000(1361)	14.8 (4.5)	16.4(5.0)	170	140		3	6482(2940)	65.0(19.8)
  6000(2722)	10.5(3.2)	12.5 (3.8)	260	210		4	5593(2537)	85.3(26.0)
  9500(4309)	6.6(2.0)	9.2(2.8)	380	270



  ITEM	EWB9500U
  Overall dimensions	22.6″×6.3″×10.0″
  (L×W×H)	574mm×160mm×254mm
  Net weight (Ibs/kg)	80.7lbs / 37.5kg
