- Description

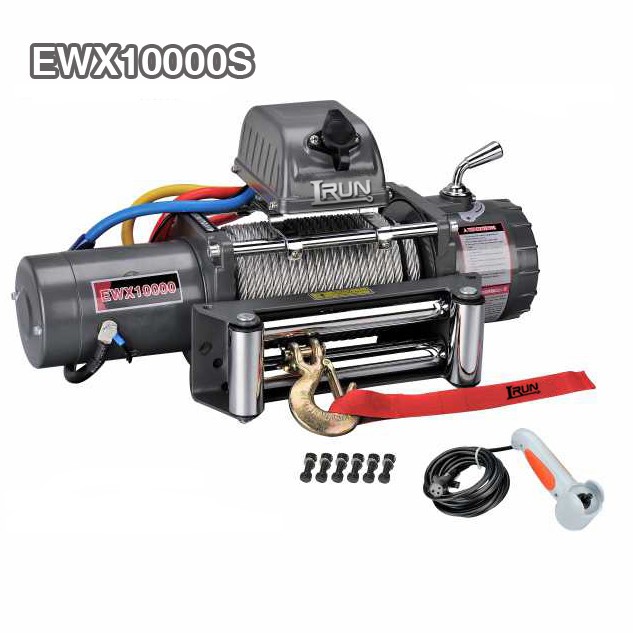

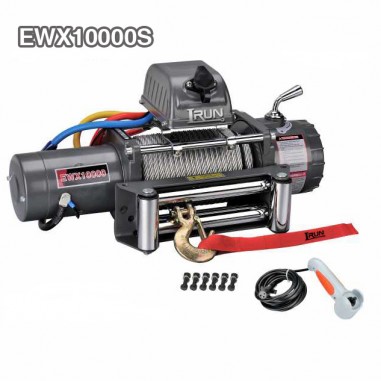

Model No. EWX 10000S 10000 lbs Electric Winch with control box on winch tie bar.
Our recovery Winch EWX Series features perfect efficiency ,stable pulling and compact design. The Patent three stage planetary gear reducer make winch be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
Overall Dimensions：21.9″ x 6.3″ x 11.1″
(L x W x H) 557mm x 160mm x 283mm
Net Weight：40.5 KGS
EWX10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp |
| 24V:Input: 5.9kW / 7.9hp; Output: 3.0kW /4.0hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 17.4(5.3) | |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 | 2 | 7969(3615) | 39.4(12.0) |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 | 3 | 6624(3005) | 65.0(19.8) |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 | 4 | 5667(2571) | 85.3(26.0) |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 | 245 | |||
| ITEM | EWX10000U | EWX10000S | EWX10000F |
| Overall dimensions | 21.9″×6.3″×10.0″ | 21.9″×6.3″×11.1″ | 21.9″×6.5″×9.9″ |
| (L×W×H) | 557mm×160mm×254mm | 557mm×160mm×283mm | 557mm×166mm×251mm |
| Net weight (Ibs) | 88.2 | 89.3 | 93.9 |
| (kgs) | 40.0 | 40.5 | 42.6 |
Looking for ideal Recovery Winches 10000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Vehicle Recovery Winches are quality guaranteed. We are China Origin Factory of Runva Recovery Winch. If you have any question, please feel free to contact us.
