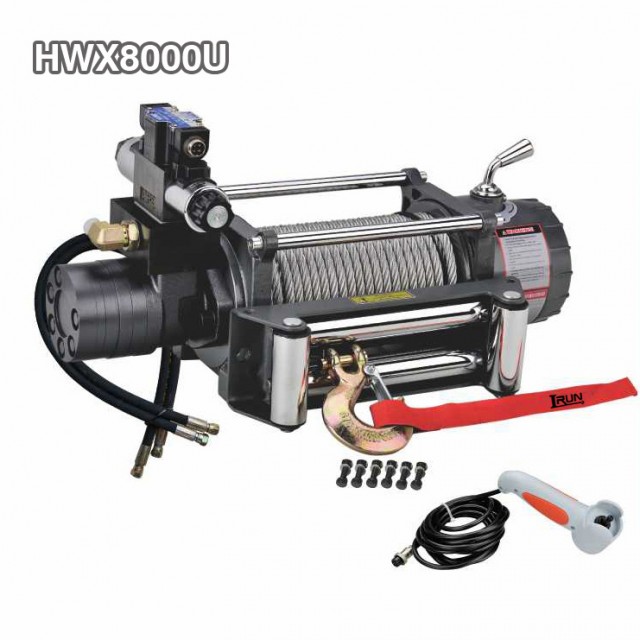

Two Stage Planetary 4×4 Hydraulic Winch 8000lbs With Hydraulic Accessories
Model No.: HWX8000U
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
8000 lbs Hydraulic Winch Item No. HWX8000U
Features:
1.Full steel reducer gear
2.Low oil flow stable working motor
3. Patent two stage planetary gear reducer
4. Vehicle’s existing steering power pump drive
5. Automatic screw cone braking action
6. Sliding geared ring clutch
7. DC 12v or DC24v power drive optional
8. Wire remote control
9. Wireless remote control available
10. SWR tensioner available
11. Can not use it working as lift
HWX8000U
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 8.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
|
4000(1814) |
3.6(522.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
6.5(942.7) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.5(1232.8) |
9.2(35) |
12.8(3.9) |
|
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
8000(3629) |
20.0(6.1) |
|
|
2 |
6529(2962) |
44.3(13.5) |
|
|
3 |
5515(2502) |
72.2(22.0) |
|
|
4 |
4773(2165) |
95.1(29.0) |
| ITEM | HWX8000A | HWX8000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.5 | 87 | |
| (kgs) | 39.7 | 39.5 |
Overall Dimensions 21.6″ x 6.3″ x 10.6″
(L x W x H) 550mm x 160mm x 270mm
Net Weight 39.5 KGS
Looking for ideal 4X4 Hydraulic Winch 8000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Small Hydraulic Winches are quality guaranteed. We are China Origin Factory of 8000 Winches Hydraulic. If you have any question, please feel free to contact us.
