- Description

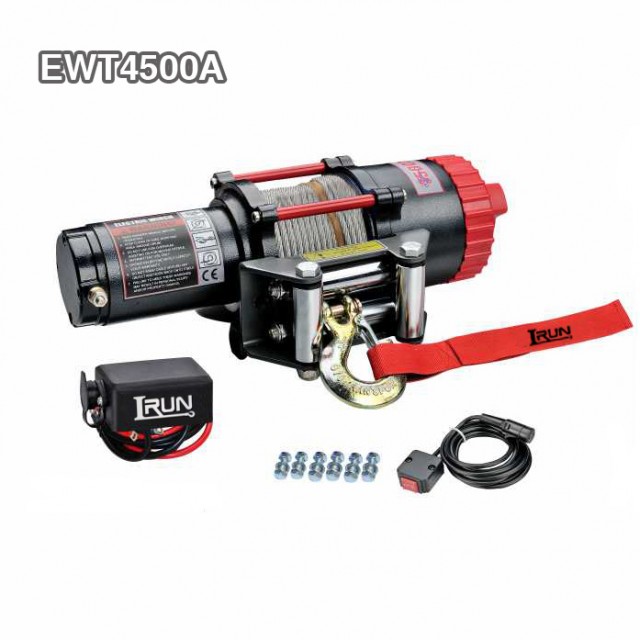

Electric Winch 4500lb Item No.EWT4500A
Features:
1. 3-stage planetary steel gear reducer .
2. Each winch with a seperate control box
3. Patent design clutch structure
4. Free spooling clutch
5. Automatic screw cone braking action
6. DC 12V or DC 24V Power drive optional
7. High crruent working switch control directly
8. ATV handlebar switch control
EWT4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet |
12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125 mm) |
| Mounting bolt pattern | 6.6″×3.0″ (168mm×76.2 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 10.8(3.3) | |
| 0 | 12.5(3.8) | 14.4(4.4) | 28 | 14 | 2 | 3833(1740) | 24.0(7.3) |
| 1000(454) | 8.5(2.6) | 11.1(3.4) | 140 | 50 | 3 | 3338(1515) | 39.4(12.0) |
| 2500(1135) | 6.2(1.9) | 8.8(2.7) | 170 | 90 | 4 | 2957(1342) | 47.6(14.5) |
| 4500(2041) | 5.2(1.6) | 4.6(1.4) | 220 | 110 | |||
| ITEM | EWT4500D | EWT4500A | EWT4500U |
| Overall dimensions |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.3″×4.5″×6.6″
413mm×125mm×168mm |
| (L×W×H) | |||
|
Net weight (Ibs)
(kgs) |
29.8
13.5 |
32.4
14.7 |
32.4
14.7 |
Overall dimensions: 16.2″x4.5″x4.8″
(LxWxH) 412mmx125mmx123mm
Net Weight: 14.7 kgs
