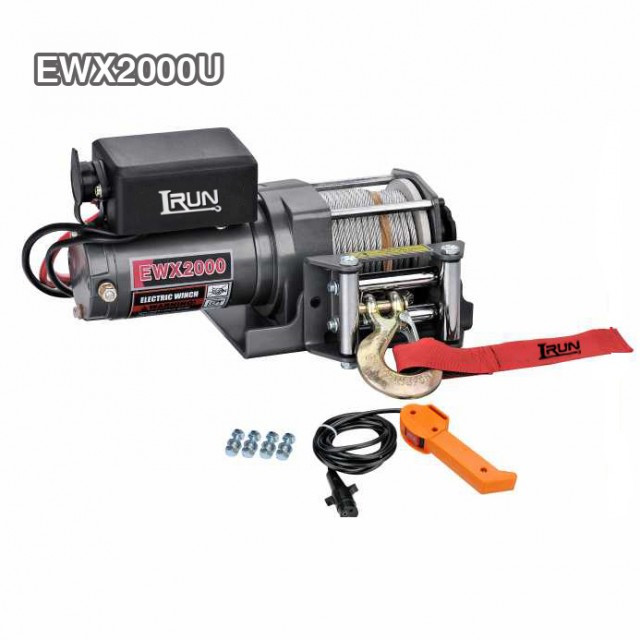

ATV winch: model EWX2000U.

The EWX2000U model of a 2000 Lb winch is a solid black electricity-driven winch which brings together the good looks. With a weight of roughly 8.5 KGs and a length of about 11.5 inches, this winch is capable of pulling up to 907KGs .

with a reducer gear made of pure steel and a powerful permanent magnet motor, the durability of the 2000 Lb winch is less of a concern. In addition, the winch comes with a detachable control box fixing on winch motor.

Features:

1.)Full steel reducer gear
2) Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V power drive optional
5.)High current working switch control directly
6.)ATV Handlebar switch control
7.)Control box detachable fixing optional
8.)Control box separate fixing optional
9.)Remote control through contorl box and switch
10.) Wireless remoto control avilable

EWX2000

SPECIFICATION
Rated line pull	2000 lbs (907 kgs)
Motor: permanent magnet	12V:Input: 1.7kW / 2.3hp; Output: 0.6kW / 0.8hp
	24V:Input: 1.9kW / 2.6hp; Output: 0.7kW / 0.9hp
Gear reduction ratio	153:1
Cable (Dia.× L)	Ø5/32″×49′(Ø4mm×15m)
Drum size (Dia.× L)	Ø1.24″×2.87″ (Ø31.5mm×73 mm)
Mounting bolt pattern	3.13″ (79.5 mm) 2-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	2000(907)	6.6(2.0)
0	9.5(2.9)	9.8(3.0)	15	12	2	1630(739)	14.1(4.3)
500(227)	8.2(2.5)	8.9(2.7)	60	40	3	1380(626)	22.3(6.8)
1500(680)	5.6(1.7)	7.5(2.3)	115	60	4	1190(540)	31.2(9.5)
2000(907)	3.6(1.1)	6.2(1.9)	145	80	5	1050(476)	41.0(12.5)
					6	940(426)	49.2(15.0)



ITEM	EWX2000D	EWX2000A	EWX2000U
Overall dimensions	11.5″×4.5″×4.3″	11.5″×4.5″×4.3″	12.1″×4.5″×5.9″
(L×W×H)	292mm×113mm×108mm	292mm×113mm×108mm	308mm×113mm×150mm
Net weight (Ibs)	17.8	18.6	18.4
(kgs)	8.1	8.5	8.4

Overall dimensions: 12.1″x4.5″x5.9″

(LxWxH) 308x113x150mm

Net Weight: 8.4kgs
