Wireless Remote Control Recovery Winches 6000lbs
Packaging: Export Caton
Brand: Runva or OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

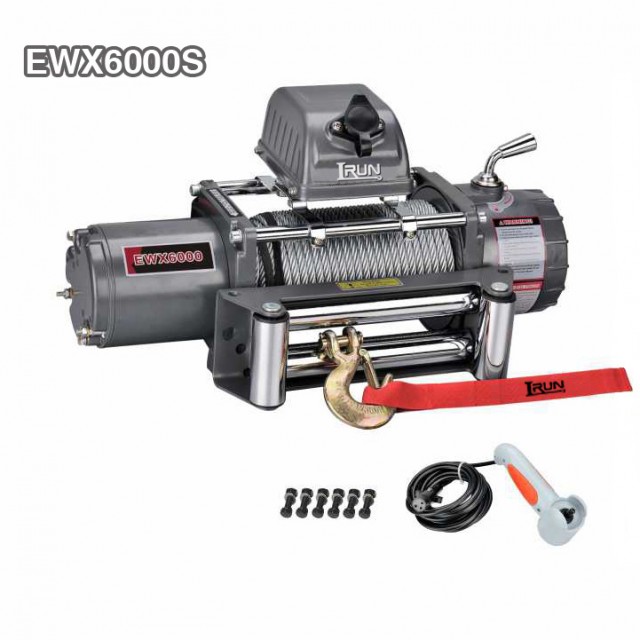

EWX6000S
6000 lbs Electric Recovery Winch with a control box tied on winch bar Item NO. EWX6000S . It’s a great option on high performance 6000 pounds electric recovery winch for Suv or Small Car .It comes with winch EWX Series’ advantages perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Permanent magent motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available
9. SWR tensioner available
EWX6000
| SPECIFICATION | |
| Rated line pull | 6000 lbs (2722kgs) |
| Motor: Series Wound | 12V:Input: 2.8 kW / 3.7hp; Output: 1. 6 kW / 2.1hp |
| 24V:Input: 2.9kW / 3.9hp; Output: 1.7 kW / 2.3hp | |
| Gear reduction ratio | 280:1 |
| Cable (Dia.× L) | Ø9/32 “×105 ‘ (Ø7.2mm×32m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 6000(2722) | 22.0(6.7) | |
| 0 | 12.8(3.9) | 14.1 (4.3) | 45 | 30 | 2 | 4979(2258) | 47.9(14.6) |
| 2000(907) | 8.2 (2.5) | 8.8 (2.7) | 100 | 45 | 3 | 4255(1930) | 77.1(23.5) |
| 4000(1814) | 7.2 (2.2) | 7.9 (2.4) | 150 | 80 | 4 | 3714(1685) | 105.0(32.0) |
| 6000(2722) | 5.9 (1.8) | 6.9 (2.1) | 230 | 120 | |||
| ITEM | EWX6000U | EWX6000S | |
| Overall dimensions | 21.4″×6.3 “×10.0 “ | 20.8″×6.3 “×11.1 “ | |
| (L×W×H) | 544mm×160mm×254mm | 527mm×160mm×283mm | |
| Net weight (Ibs) | 66.1 | 67.2 | |
| (kgs) | 30.0 | 30.5 |
Overall Dimensions：20.8″ x 6.3″ x 11.1″
(L x W x H) 527mm x 160mm x 283mm
Net Weight：30.5 KGS
Looking for ideal Recovery Winches 6000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Wireless Remote Control Winch are quality guaranteed. We are China Origin Factory of Recovery Winch 6000 Pound. If you have any question, please feel free to contact us.
