Wireless Remote Electric Offroad Heavy Duty Winches 10000 Lbs For Truck
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

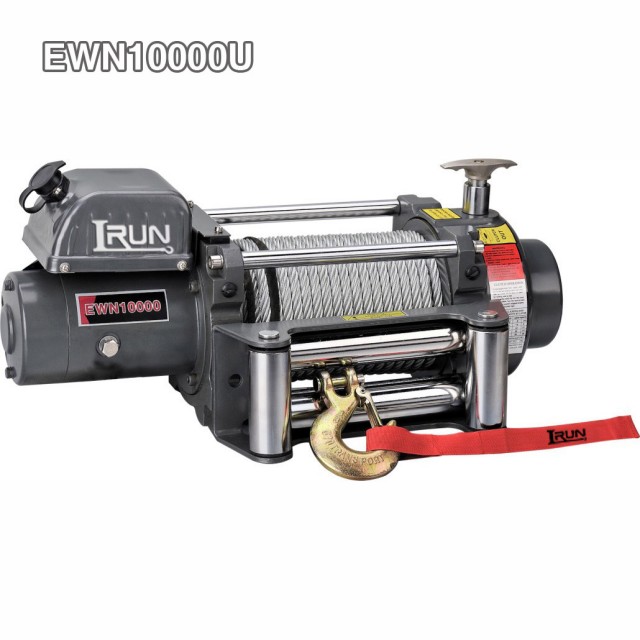

EWN10000U
Heavy Duty Electric Recovery Winch Item No. EWN10000U Winching Capacity of up to 10000lbs
Each winch come along with a control box installed on winch Motor, a wire rope with hook,a roller failread.
This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.
Heavy Duty Winch EWN Series have a more durable working life, faster line speed and better efficient transmission than our Winch EWX Series.They’re widely applied for the severe offroad or engineering use.
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet |
12V:Input: 4.0kW / 5.3hp;Output: 1.9 kW /2.5hp
24V:Input: 4.9kW /6.6hp;Output: 2.4 kW /3.2hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø3/8″×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.8 “×8. 6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.4(5.6) | |
| 0 | 15.7(4.8) | 14.8(4.5) | 80 | 40 | 2 | 8000(3629) | 41.3(12.6) |
| 3000(1361) | 9.2(2.8) | 9.5(2.9) | 160 | 70 | 3 | 6700(3039) | 65.6(20.0) |
| 6000(2722) | 6.6(2.0) | 7.2(2.2) | 225 | 100 | 4 | 5747(2607) | 85.3(26.0) |
| 8000(3629) | 5.6(1.7) | 6.1(1.85) | 300 | 120 | |||
| 10000(4536) | 4.6(1.4) | 5.4(1.65) | 330 | 206 | |||
| ITEM | EWN10000U | EWN10000S | |
| Overall dimensions |
22.2″×8.1″×9.7″
563mm×206mm×246mm |
22.2″×8.1″×11.8″
563mm×206mm×299mm |
|
| (L×W×H) | |||
| Net weight (Ibs) |
128.5
58.3 |
129.4
58.7 |
|
| (kgs) |
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
Overall Dimensions 22.2″ x 8.1″ x 9.7″
(L x W x H) 563mm x 206mm x 246mm
Net Weight 58.3 KGS
Looking for ideal Off Road Heavy Duty Winches 10000lbs Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Wireless Remote Electric 4WD Winches are quality guaranteed.
If you have any question, please feel free to contact us.
